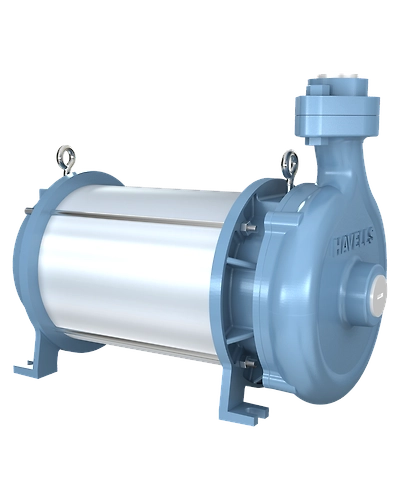

• W-2 0.37 kW (0.5 HP)
W-2 0.37 kW (0.5 HP)-

W-2 0.37 kW (0.5 HP)

Price upon request
Brand Havells
SKU:
Write a Review

Product Code : MHPHWS0X50

Quick Overview

  • Capacity / Power : 0.5 HP
  • Energy Efficient Motor : Motors are with B Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures.
  • Pump Performance : Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.
  • Warranty : 1 Year

  • Additional Information


    Quick Features
    Name of Commodity Submersible pump
    Capacity / Power 0.5 HP
    Energy Efficient Motor Motors are with B Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures.
    Pump Performance Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.
    Warranty 1 Year

    Detail Features
    Motor Insulation Class B Motor design is compact. Motor temperature withstand capacity increases upto 115 °C . It protects motor from winding burning due to wide voltage fluctuations resulting in high temperature increase. Most of the pumps available in market are with B Class insulation, which provides insufficient protection.
    IP 68 Protection Pump suitable for under water operation
    Motor Windings: PVC coated copper winding wires gives high motor efficiency.
    Pump Shaft: Stainless Steel Shaft (SS 410) of the pump set protects the pump shaft from rusting due to hard water. Hard SS shaft has less wear and tear providing longer life to pump. Other pumps available in market have EN 8 shafts, which get rusted easily and have shorter life in hard water.
    Pump Casting: High Grade Pump Castings (FG 200 grade) ensures very slow rusting of pump. Pump life is increases due to less rusting and wear and tear. Most of the pumps available in market have low grade castings, which causes rusting of pump parts.
    Pump Seal: High quality mechanical seal has long life. It completely seals and prevents the water entering into the motor side. It works for longer period with lesser wear and tear.
    Impeller: SS Impeller
    Home Service: Home service of the pumps assures trouble free service.
    Pump Warranty: Havells pumps are available with 1 Year Warranty.

    Technical Specification
    BASIC FEATURES
    Suitable for Single Phase supply
    Applications Under ground water tanks in Apartments, bungalows, farm-houses, fountains
    Operating water temperature up to 65 °C
    Maximum working pressure 2 kg/cm²
    Low power consumption Yes

    MOTOR FEATURES
    Pipe size 13 mm x 13 mm (1.3 cm x 1.3 cm)
    Motor speed (Revolution per minute) 2900 Revolution per minute
    Motor body SS / Special grade Cast Iron
    Motor stator Low watt loss silicon steel lamination
    Winding type PVC insulated Copper winding
    Direction of rotating Anti-clockwise when viewed from driving end
    Dynamically balanced rotor Yes

    PUMP FEATURES
    Pump casing Graded Cast Iron
    Impeller Stainless Steel
    Shaft Stainless Stell (SS-410)
    Ss vs teflon carbon thrust bearing set ltb bush on both side Yes

    POWER DETAILS
    Rated power input (kW) 0.37 kW
    Power HP 0.5 HP
    Voltage operating range 180 V to 240 V
    Rated frequency hertz 50 Hz
    Rated input current 5.5 Ampere

    DISCHARGE IN LITRE MINUTE AT VARIOUS HEIGHTS
    8 metre in L 155
    10 metre in L 140
    12 metre in L 130
    14 metre in L 115
    16 metre in L 100
    18 metre in L 70
    20 metre in L 50

    DIMENSIONS AND WEIGHT
    Weight (kg) 16 kg
    Height mm 248 mm
    Width mm 154 mm
    Depth mm 316 mm

    ACCESSORIES
    Power supply cable Yes

    PACKAGING MEASUREMENTS
    Packaging Dimensions (cm) 34 cm x 17.5 cm x 32 cm

    SALES PACKAGE (S)
    Net contents 1 pump set, 1 power cord of 5 metre length, 1 control panel, 1 instruction manual, 1 warranty card

    WARRANTY \ GUARANTEE
    Warranty 1 Year
