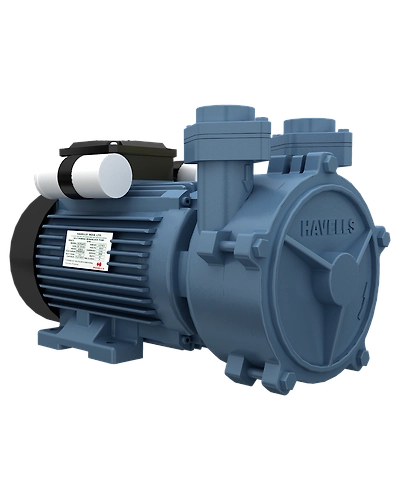

• D-1 0.75 kW (1.0 HP)
D-1 0.75 kW (1.0 HP)-

D-1 0.75 kW (1.0 HP)

Price upon request
Brand Havells
SKU:
Write a Review

Product Code : MHPBDS1X00

Quick Overview

  • Capacity / Power : 1.0 HP
  • Energy Efficient Motor : Motors are with F Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures.
  • Pump Performance : Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.
  • Warranty : 2 Year

  • Additional Information


    Quick Features
    Name of Commodity MONOBLOCK PUMP
    Capacity / Power 1.0 HP
    Energy Efficient Motor Motors are with F Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures.
    Pump Performance Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.
    Warranty 2 Year

    Detail Features
    Motor Insulation Class F: Motor design is compact. Motor temperature withstand capacity increases upto 155 °C . It protects motor from winding burning due to wide voltage fluctuations resulting in high temperature increase. Most of the pumps available in market are with B Class insulation, which provides insufficient protection.
    IP 55 Protection: High quality injection moulded round shaped polycarbonate housing in white finish with white powder coated aluminium sheet top as heat sink for efficient thermal management and excellent corrosion resistant.
    Motor Windings: Dual coated H Class copper winding wires gives high motor efficiency. Winding wires can withstand high temperature and motor winding is protected from burning. Most of the pumps available in market have ordinary enamelled copper wire or aluminum wire windings making them inefficient.
    Pump Shaft: Stainless Steel Shaft (SS 410) of the pump set protects the pump shaft from rusting due to hard water. Hard SS shaft has less wear and tear providing longer life to pump. Other pumps available in market have EN 8 shafts, which get rusted easily and have shorter life in hard water.
    Pump Casting: High Grade Pump Castings (FG 200 grade) ensures very slow rusting of pump. Pump life is increases due to less rusting and wear and tear. Most of the pumps available in market have low grade castings, which causes rusting of pump parts.
    Pump Seal: High quality mechanical seal has long life. It completely seals and prevents the water entering into the motor side. It works for longer period with lesser wear and tear.
    Impeller: Forged Brass Impeller is very hard. Wear & tear of the impeller is highly reduced. This results in better pump performance even after many years. Other make of pumps have brass impellers and wear out fast due to partcles in water.
    Home Service: Home service of the pumps assures trouble free service.
    Pump Warranty: Havells pumps are available with 2 Year Warranty.

    Technical Specification
    BASIC FEATURES
    Suitable for Single Phase supply
    Applications Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
    Operating water temperature up to 65 °C
    Maximum working pressure 4.8 kg/cm²
    High suction with self priming up to 8 m
    Low power consumption Yes

    MOTOR FEATURES
    Pipe size 25 mm x 25 mm (2.5 cm x 2.5 cm)
    Motor speed 1500 Revolution per minute
    Motor body Graded Cast Iron
    Motor stator Low watt loss silicon steel lamination
    Winding type Copper winding
    Direction of rotating Anti-clockwise when viewed from driving end
    Dynamically balanced rotor Yes

    PUMP FEATURES
    Pump casing Graded Cast Iron
    Impeller Forged brass
    Shaft Stainless Steel (SS-410)
    High quality mechanical seal Yes

    POWER DETAILS
    Rated power input (kW) 0.75 kW
    Power (HP) 1 HP
    Voltage operating range (V) 180 V to 240 V
    Rated frequency (hertz) 50 Hz
    Rated input current 5.6 Ampere

    DISCHARGE IN LITRE HOUR AT VARIOUS HEIGHTS
    6 metre in L 4200
    9 metre in L 3950
    12 metre in L 3750
    15 metre in L 3450
    18 metre in L 3250
    21 metre in L 3000
    24 metre in L 2880
    27 metre in L 2520
    30 metre in L 2250
    33 metre in L 2020
    36 metre in L 1850
    45 metre in L 1450
    48 metre in L 900

    DIMENSIONS AND WEIGHT
    Gross weight (kg) 28 kg
    Height mm 222 mm
    Width mm 192 mm
    Depth mm 359 mm

    ACCESSORIES
    Packaging dimensions WxHxD (cm) 42.5 cm x 23.8 cm x 21 cm
    Power supply cable Yes

    SAFETY FEATURES
    In built thermal overload protector Yes

    MOTOR TYPE
    Motor insulation class Class F

    SALES PACKAGE (S)
    Net contents 1 pump set, 1 power cord of 1 metre length, 1 instruction manual, 1 warranty card

    WARRANTY \ GUARANTEE
    Warranty 2 Year
