• Blaze Square 12 W Warm Daylight (WDL)
Blaze Square 12 W Warm Daylight (WDL)-

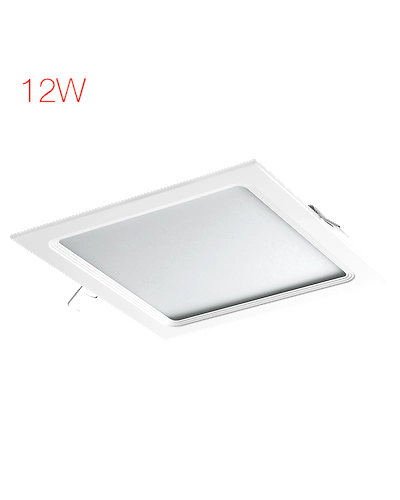

Blaze Square 12 W Warm Daylight (WDL)

Price upon request
Brand Havells
SKU:
Write a Review

Product Code : LHEBMFP5IZ2W012

Quick Overview

  • Decorative 4 W Swivel spot light : Aesthetically designed, decorative recess mounted Swivel spot
  • Optics : High quality polycarbonate lense with 36° Beam angle
  • Applications : Suitable for Showrooms, Restaurants, Hotel lobbies, Car showrooms, Call centres & BPO’s, Malls and retail stores, Corridors & passage areas
  • Warranty : 1 Year

  • Additional Information


    Quick Features
    Name of Commodity LED Panels
    Decorative 4 W Swivel spot light Aesthetically designed, decorative recess mounted Swivel spot
    Optics High quality polycarbonate lense with 36° Beam angle
    Applications Suitable for Showrooms, Restaurants, Hotel lobbies, Car showrooms, Call centres & BPO’s, Malls and retail stores, Corridors & passage areas
    Warranty 1 Year

    Detail Features
    Power Consumption Lower power consumption
    Brightness Better lumens & longer lamp life
    Safety No UV & IR radiation
    Environment friendly Environment friendly as it does not contain mercury. Also it consumes very low energy and produce low running temperature
    Light Response Instant light
    Colour Rendering Index (CRI) Color rendering, expressed as a rating from 0 to 100 on the Color Rendering Index (CRI), describes how a light source makes the color of an object appear to human eyes and how well subtle variations in color shades are revealed. The higher the CRI rating is, the better its color rendering ability.
    Long Life Extraordinary long life of over 30,000 burning hours ensures zero maintenance
    Housing & Finish High quality injection molded polycarbonate housing in white finish and aluminum heat sink inside with efficient thermal management.
    Diffuser High quality polycarbonate flat opal diffuser for glare free uniform light distribution.
    Electronic driver Powered by a separate electronic driver in white finish PC housing, (SMPS based constant current supply) with THD < 33%.
    Mounting Fixing into false ceiling by means of 2 N SS springs/ clips provided as per instructions.

    Technical Specification
    BASIC DETAILS
    Bulb technology LED
    Suitable for Suitable for Residential Bungalow, Residential Flats, Small shops
    Mounting type Recess
    Bulb included Yes
    Dimmable No

    FIXTURE DESIGN
    Material Aluminum
    Body colour White
    Body finish Matt
    Fixture shape Square
    Diffuser shape Square
    Diffuser transparency Opal
    Mounting arrangement SS Spring Clip
    Driver Indipendant

    RATED LUMINOUS FLUX
    Light output (Lumens) 650 lm

    PERFORMANCE FEATURES
    Colour rendering index (CRI) 80
    Lamp life hours 25000 hours
    Colour temperature (kelvin) 3000 K
    Light effect Natural Daylight
    Start up time Instant (less than .5 s)
    Light source equivalent to traditional bulb 80 W

    POWER FEATURES
    Wattage 12 W
    Rated input voltage 230 V
    Rated input current 0.06 mA
    Power factor 0.9
    Frequency 50 Hz
    Operating temperature -10 °C to + 45 °C

    SAFETY FEATURES
    Mercury content No mercury
    Voltage withstanding range 140 V - 270 V
    Ip IP20

    WARRANTY \ GUARANTEE
    Warranty 1 Year

    DIMENSIONS AND WEIGHT
    Cut out dimensions 18 cm x 18 cm (180 mm x 180 mm)
    Recessed distance 10 mm
    Height 15 mm
    Dia 175 mm
    Width 175 mm
    Net weight 0.260 kg
    Packaging dimensions LxWxH (cm) 25 cm x 20 cm x 3.5 cm

    SALES PACKAGE (S)
    Net contents 1 Fixture & 1 Driver
