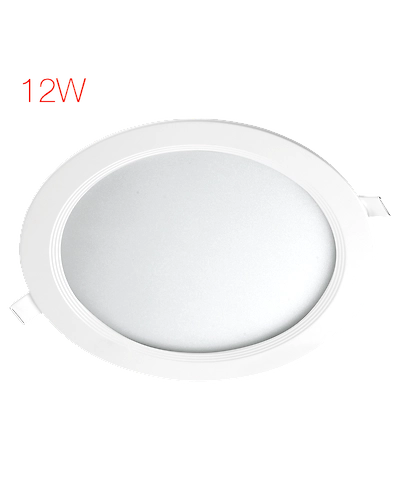

• Blaze Round 12 W Warm Daylight (WDL)
Blaze Round 12 W Warm Daylight (WDL)-

Blaze Round 12 W Warm Daylight (WDL)

Price upon request
Brand Havells
SKU:
Write a Review

Product Code : LHEBMFP5IZ1W012

Quick Overview

  • Edgelit LED Panel : Aesthetically designed, decorative recess mounted Ultraslim LED Panel
  • Optics : High efficiency,glare free, opal Diffuser
  • Applications : Suitable for Corporate offices, Banks & ATM outlets, Software development centers, Modern work spaces, Showrooms
  • Warranty : 1 Year

  • Additional Information


    Quick Features
    Name of Commodity LED Panels
    Edgelit LED Panel Aesthetically designed, decorative recess mounted Ultraslim LED Panel
    Optics High efficiency,glare free, opal Diffuser
    Applications Suitable for Corporate offices, Banks & ATM outlets, Software development centers, Modern work spaces, Showrooms
    Warranty 1 Year

    Detail Features
    Power Consumption Lower power consumption
    Brightness Better lumens & longer lamp life
    Safety No UV & IR radiation
    Environment friendly Environment friendly as it does not contain mercury. Also it consumes very low energy and produce low running temperature
    Light Response Instant light
    Colour Rendering Index (CRI) Color rendering, expressed as a rating from 0 to 100 on the Color Rendering Index (CRI), describes how a light source makes the color of an object appear to human eyes and how well subtle variations in color shades are revealed. The higher the CRI rating is, the better its color rendering ability.
    Long Life Extraordinary long life of over 30,000 burning hrs. ensures zero maintenance
    Housing & Finish High quality injection molded polycarbonate housing in white finish and aluminum heat sink inside with efficient thermal management.
    Diffuser High quality polycarbonate flat opal diffuser for glare free uniform light distribution.
    Electronic driver Powered by a separate electronic driver in white finish PC housing, (SMPS based constant current supply) with THD<33%.
    Mounting Fixing into false ceiling by means of 2 nos. SS springs/ clips provided as per instructions.

    Technical Specification
    BASIC DETAILS
    Bulb technology LED
    Suitable for Suitable for Residential Bungalow, Residential Flats, Small shops
    Mounting type Recess
    Bulb included Yes
    Dimmable No

    FIXTURE DESIGN
    Material Aluminum
    Body colour White
    Body finish Matt
    Fixture shape Round
    Diffuser shape Round
    Diffuser transparency Opal
    Mounting arrangement SS Spring Clip
    Driver Indipendant

    PERFORMANCE FEATURES
    Rated luminous flux light output ( (lumens) ) 650
    Colour rendering index ( cri ) 80
    Lamp life ( (hours) ) 25000
    Average lamp life
    Colour temperature ( kelvin ) 3000
    Light effect Warm Daylight
    Start up time ( (seconds) ) Instant (less than .5 seconds)
    Light source equivalent to traditional bulb (Watts) 80

    POWER FEATURES
    Wattage (Watts) 12
    Rated input voltage v 230
    Rated input current ma 0.06
    Power factor 0.9
    Frequency ( hertz ) 50
    Operating temperature (º Celsius) -10°C to + 45°C

    SAFETY FEATURES
    Mercury content ( mg per lamp ) No mercury
    Voltage withstanding range ( Volts ) 140-270
    Ip IP20

    WARRANTY
    Warranty 2 Years

    DIMENSIONS AND WEIGHT
    Cut out dimensions (mm) 180
    Recessed distance (mm) 10
    Height mm 15
    Dia (mm) 175
    Width (mm) N/A
    Net weight (kg) 0.260
    Packaging dimensions lxwxh (mm) 250x200x35

    SALES PACKAGE
    In the box 1 Fixture & 1 Driver
